Track and Hanger
A Farm & Field Favorite

Exterior Barn Door Hardware

Create expansive, sweeping openings with complete sliding barn door hardware systems. Choose from an array of options for barns, all designed to withstand the weather and strike balance with the outdoors.

Shop Exterior Barn Door Hardware

Exterior Barn Door Rails
Exterior Barn Door Rails
Exterior Barn Door Rails
Shop All
Exterior Barn Door Hangers
Exterior Barn Door Hangers
Exterior Barn Door Hangers
Shop All
Exterior Barn Door Parts & Accessories
Exterior Barn Door Parts & Accessories
Exterior Barn Door Parts & Accessories
Shop All

Sliding Barn Door System

How It All Works Together
3 STEPS

To Creating A Sliding Barn Door System


Sliding Door Frames

Sliding Door Frames

Steel Construction
16 gauge steel construction for strong wind resistance.

Fast Installation
Pre-punched fastener holes for fast installation.

Self-Flashing
Self-flashing to accept metal sheets and conceal cut edges.

Clean Look
Verticals are pre-finished white powder coated for a clean look.

SLIDING DOOR FRAMES

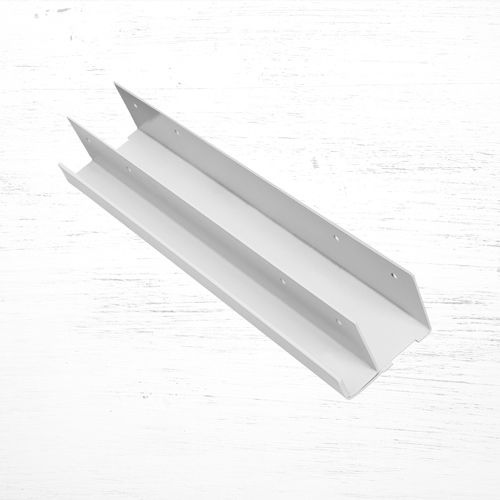

Easy-Frame®
National Hardware's Easy Frames are self-flashing verticals that allow door coverings to slide into the channel of the vertical for a clean, smooth fit.
View Products
Sliding Door Frames

Fast, One Man Assembly
TAB-LOC™ technology allows fast and easy assembly without fasteners.

Durable
For 2" galvanized steel doors that will not warp, crack, decay or swell.

Steel Construction
16 gauge steel construction for wind resistance.

Self-Flashing
Self-flashing to accept metal sheets and conceal cut edges.

SLIDING DOOR FRAMES

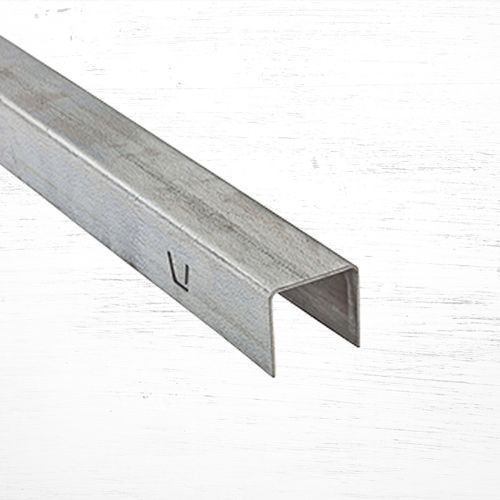

Tab-Locâ„¢ Frames
TAB-LOC lets one man assemble a steel door frame in 10 minutes. The secret is our exclusive locking tabs. These built-in fasteners are pre-punched into the frame members. Just bend the tabs down into matching slots for a square, tight, permanent steel door frame. Unlike any other door frame, you don't even need a level area for assembly. Once you're familiar with TAB-LOC, 10 minutes is all it takes to get a frame ready to attach the sliding door. In fact, the door can be completed and hung in under an hour versus other standard installing options.
View Products
Sliding Door Frames

Steel Construction
Verticals are available in 16 gauge steel construction with 16 gauge steel horizontals for maximum wind resistance on large doors.

Fast Installation
Self-tapping assembly screws for faster installation.

Door Control
Integrated steel bottom guide system for better door control.

Self-Flashing
Self-flashing to accept metal sheets and conceal cut edges.

SLIDING DOOR FRAMES

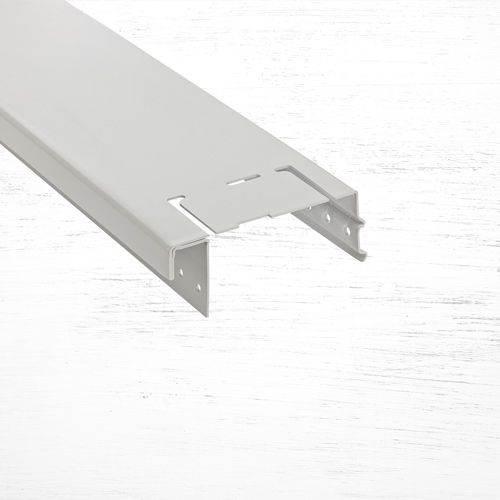

Max Easy-Frame®
Assembly is simple and fast with Max Easy-Frame®. Our steel laterals easy slide into self-flashing steel verticals and attach with our self-drilling screws.
View Products
Aluminum Frames

Clean Look
Verticals are pre-finished white powder coated for a clean look.

Weather Proofing
Works with optional weather stripping to seal outside edges of doors to jamb.

Self-Flashing
Self-flashing vertical channel fits different metal cuts.

Strong and Durable
Wider edge profile provides greater strength.

SLIDING DOOR FRAMES

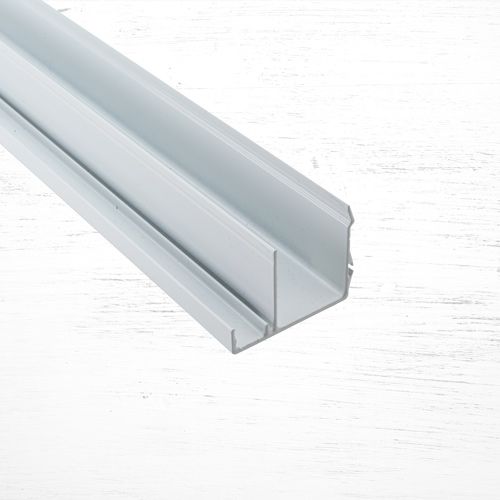

Aluminum Frames
Our Aluminum Frames are for 1-1/2" wood laterals.
View Products

Rails and Hangers

TrackMaster Round Rail

Increased Stability
Verticals are pre-finished white powder coated for a clean look.

Can Hold Up to 600 lbs
Rated for up to 600 lbs per hanger pair on single trolley doors.

Self-Cleaning
Round body allows for self-cleaning.

Galvanized Steel
Galvanized steel is wear-tested for extreme long life.

RAILS AND HANGERS
TrackMasterâ„¢ Round Rail
TrackMaster™ rail and hangers combine the easy mounting features and stability of box-rail with the smooth operation of round rail. The result is a round-rail system that is easier-to-install, easier-to-operate, self-cleaning, and longer-lasting. Supporting a 600l lb door, TrackMaster™ hangers have been torture tested without failure through over 10,000 cycles of opening and closing a door! (That's opening and closing the door once a day for 30 years!)
View Products
Box Rail

Galvanized Steel Construction
16 gauge galvanized steel for dependable performance.

Door Load
Available in 450 lb and 600 lb door load capacities.

Mounting Configurations
Available with welded-on brackets and slide-on brackets for multiple mounting configurations.

RAILS AND HANGERS

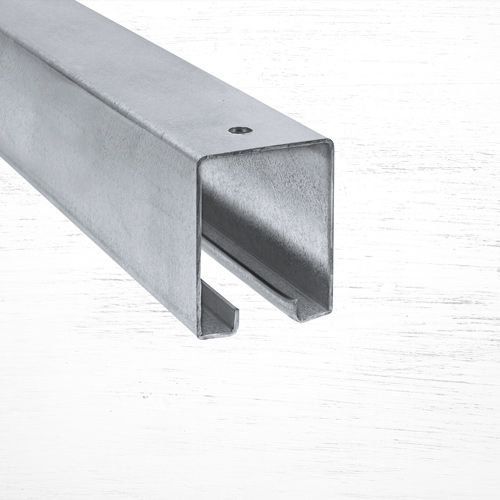

Box Rail
National Hardware has a complete selection of box rails that are designed for use on doors weighing up to 450 lbs or 600 lbs. Our 450 lbs rated track meets ANSI/BHMA A156.14, Grade 2 specs. Our box rail is manufactured from galvanized steel for weather resistance and strength and is carefully formed to give an even tread to hanger wheels. National Hardware's box rail comes with optional pre-mounted brackets for fast, simple installations or can be used with many types of single and multiple brackets for a variety of door openings.
View Products
TrackMaster Round Rail Hangers

Extensively Tested
Torture tested to over 225,000 feet of travel while keeping an operating force of less than 5% of the weight of the door.

Delrin® Wheels
Available with Delrin® wheels with steel roller bearings for a quiet smooth operation.

Hardened Steel Wheels
Available with hardened steel wheels with steel roller bearings for the ultimate in-hanger longevity door control.

Weight Capacity
Double tandem bracket will double a single hanger door weight capacity from 600 lbs to 1,200 lbs.

RAILS AND HANGERS

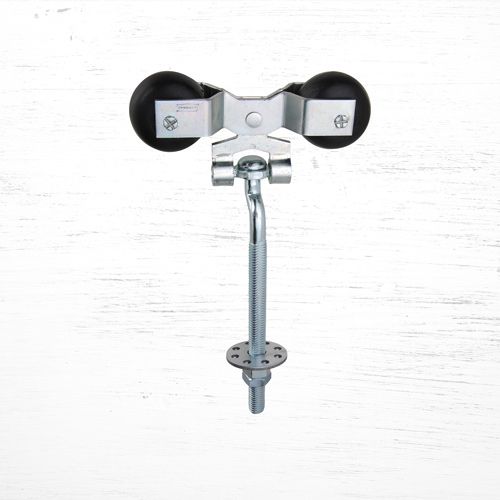

TrackMasterâ„¢ Round Rail Hangers
National Hardware's TrackMaster™ round rail and hangers are designed with a flat top and sides for easier mounting and better stability. Designed for doors weighing up to 600 lbs. TrackMaster™ allows the track to be self-cleaning and smoother operation. Manufactured from galvanized steel for weather resistances and strenghts
View Products
Box Rail Hangers

Delrin Bearings­®
Available with self-lubricating Delrin bearings for quiet, smooth operation.

Steel Roller Bearings
Available with hardened steel roller bearings for increased hanger longevity.

Multiple Configurations
Multiple configurations for rigid & offset adjustable bolts, as well as door strap options.

RAILS AND HANGERS

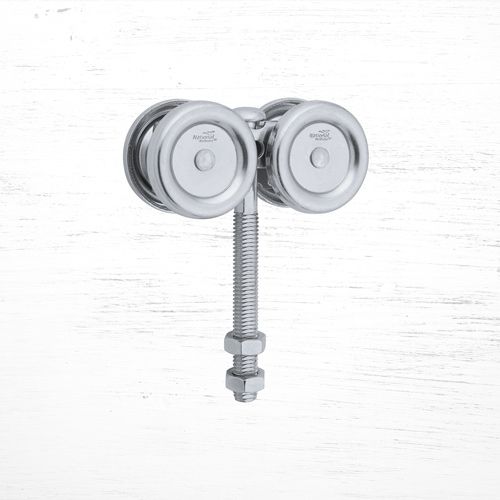

Box Rail Hangers
National Hardware offers Box Rail hangers with Delrin or steel bearings. Our hangers are designed and manufactured using durable one-piece, precision-formed steel. National Hardware's Box Rail Hangers have a safe working load of 250 lbs or 300 lbs. We offer hangers in flexible or rigid types with a wide variety of functions.
View Products
WeatherGuard

Benefits

corrosion resistant hardware
  • Galvanized Finish
    Galvanized finish for rust protection
  • House with windows
    Extends the life of outdoor hardware
  • Stacks of Lumber
    Safe to use with pressure treated/ACQ lumber

Exterior Barn Door Inspiration

Featured

Inspiration

View All

How-To

Product information, safety considerations, installation footage, and a step-by-step demonstration of the installation process for installing you National Hardware exterior barn door hardware.
